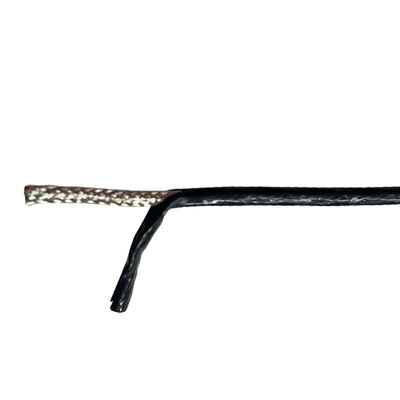

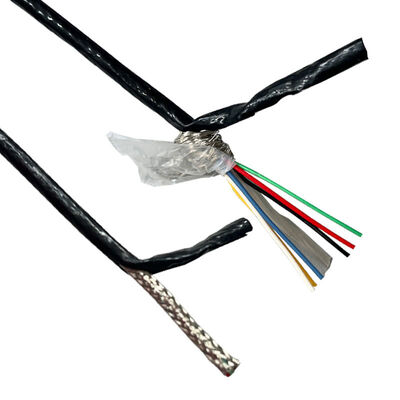

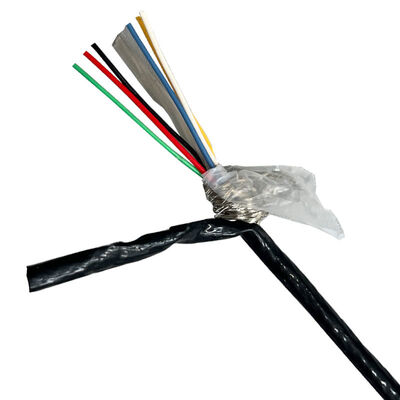

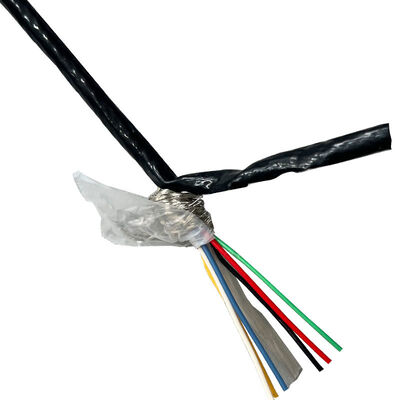

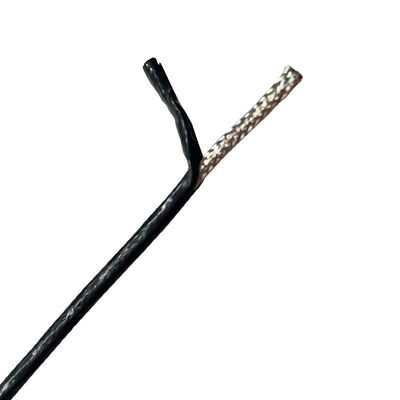

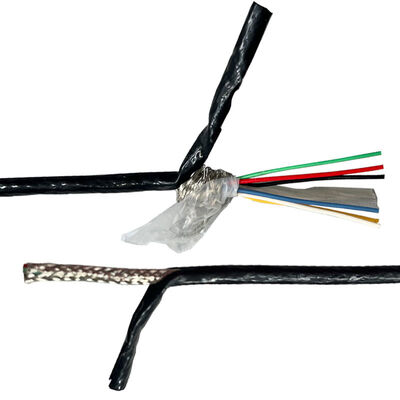

6x26AWG Silver Plated Copper Tefzel Shielding Cable
ETFE Insulated Wire is engineered using advanced ETFE (Ethylene Tetrafluoroethylene) material, which provides exceptional thermal and electrical insulation properties. This makes it an ideal choice for use in high-temperature environments where traditional wire insulation materials may fail.
Our ETFE Insulated Wire withstands extreme temperatures from -200°C to 150°C without compromising structural integrity or electrical performance. Suitable for aerospace, automotive, and industrial manufacturing applications where exposure to harsh operating conditions is common.
In addition to thermal resilience, ETFE Insulated Wire offers excellent resistance to chemicals, oils, and solvents, ensuring long-term durability and reliability in challenging environments.
Engineered to meet stringent safety standards, this wire delivers consistent electrical performance with low dielectric constant and high dielectric strength, ensuring reliable power transmission and signal integrity.
Key Features
- Small diameter saves space
- Excellent electrical characteristics, mechanical strength, heat resistance, chemical resistance, and flame resistance
- Superior low temperature characteristics
- Higher tensile and impact strength than PTFE with greater dielectric strength and radiation resistance
Cable Specifications
| Conductor Materials |
Tinned Plated Copper or Silver Plated Copper |
| Conductor Type |
Stranded or Solid |
| Number Core |
1 Core, 2 Cores, 3 Cores, 4 Cores... |
| Insulation |
FEP, PFA, PTFE, ETFE Insulated |
| Sheath |
TPU Jacket |
| Rated Voltage |
600V or Below |
| Rated Temperature |
-65°C to +200°C |
| Color |
White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green... |
Product Types
| Type |
Name |
| AF-200 |
Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 |
Tin Plated Copper Core FEP Insulation Install Wire |
| AFP-200 |
Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 |
Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 |
Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
Cable Structures
| Wire Gauge |
Cross-section Area |
Conductor Structure |
Max. OD of Cable |
| 36AWG |
0.013mm² |
7/0.05 |
0.65 | 0.85 | 1.1 | 1.3 |
| 32AWG |
0.035mm² |
7/0.08 |
0.75 | 0.95 | 1.2 | 1.4 |
| 30AWG |
0.05mm² |
7/0.10 |
0.85 | 1.05 | 1.35 | 1.6 |
| 28AWG |
0.07mm² |
7/0.12 |
0.9 | 1.1 | 1.4 | 1.65 |
| 26AWG |
0.14mm² |
7/0.16 |
1.1 | 1.3 | 1.65 | 1.95 |
| 24AWG |
0.2mm² |
19/0.12 |
1.2 | 1.4 | 1.75 | 1.98 |
| 22AWG |
0.35/0.40mm² |
19/0.16 |
1.4 | 1.6 | 1.95 | 2.2 |
| 20AWG |
0.5mm² |
19/0.18 |
1.6 | 1.8 | 2.2 | 2.4 |
| 18AWG |
1mm² |
19/0.26 |
2 | 2.2 | 2.6 | 2.9 |
| 16AWG |
1.2mm² |
19/0.28 |
2.2 | 2.4 | 2.8 | 3.1 |
| 14AWG |
2mm² |
19/0.37 |
2.7 | 2.9 | 3.4 | 3.6 |
| 12AWG |
3mm² |
37/0.32 |
3.6 | 3.8 | 4.4 | 4.6 |
| 10AWG |
5mm² |
37/0.41 |
4.5 | 4.7 | 5.3 | 5.6 |
| 8AWG |
8mm² |
133/0.28 |
6 | 6.5 | 6.8 | 7.3 |
Note: FEP high temperature lead wire specification and core number are not limited to above regulation and can be customized.
