Name: FEP Insulated Wire with Rated Voltage AC 600V Oil Resistant and Strong Acid Resistant Properties
Brand: Xiangtan Shenzhou Special Cable Co., Ltd
SKU: Serie AF-200
Price: 1.10 USD
Availability: InStock

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Material conductor: Alambre de cobre estañado, alambre de cobre plateado

Material de aislamiento: Aislamiento FEP

Tipo de conductor: Trenzado o sólido

Numero núcleo: Núcleo único, 2 núcleos, 3 núcleos, 4 núcleos, 5 núcleos

Temperatura de trabajo: -65°C ~ +200°C

Tensión nominal: CA 600V o más bajo

Color: Negro, Blanco, Azul, Rojo, Amarillo, Verde, Transparente, Amarillo/Verde

Calibre de alambre: 36 AWG a 8 AWG

Área de la sección transversal: 0,013 mm2 a 8 mm2

OD máximo: 0,65 mm a 7,3 mm

Protector: Weave de alambre de cobre con estateado blindado

Estructura de conductores: 7/0,05 mm a 133/0,28 mm

Rango de temperatura: -65°C a +200°C

Clasificación de voltaje: 600 V o menos

Tipo de aislamiento: FEP, PFA, PTFE, ETFE

Resaltar:

Rated Voltage AC 600V FEP Insulated Wire

Oil Resistant FEP Cable

Strong Acid Resistant FEP Electric Wire

Información básica

Lugar de origen: Hunan, China

Nombre de la marca: Sanco cable

Número de modelo: Serie AF-200

Pago y Envío Términos

Galería

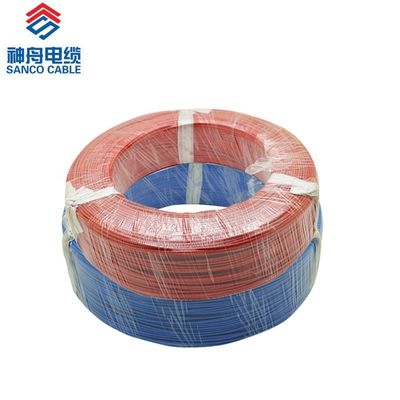

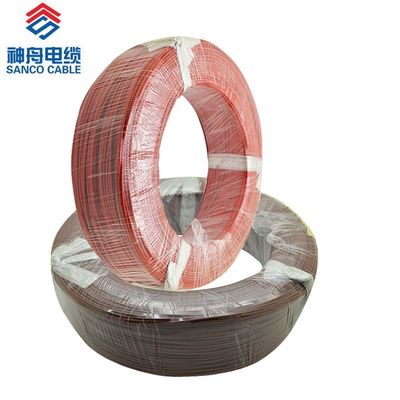

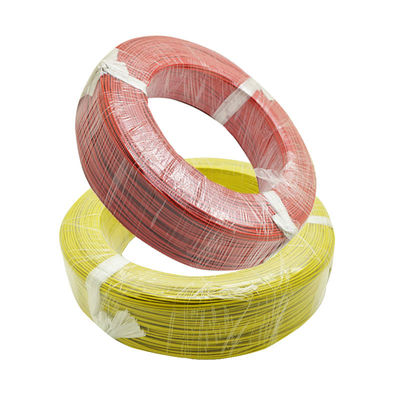

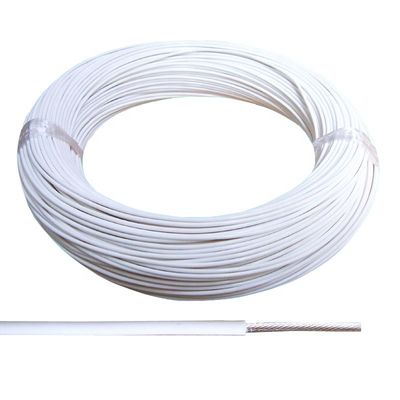

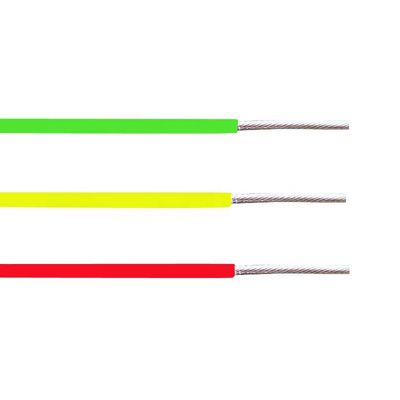

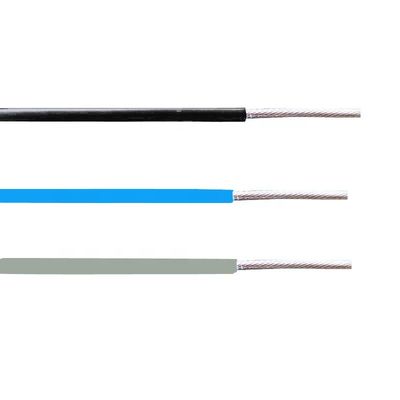

FEP Insulated Wire with Rated Voltage AC 600V Oil Resistant and Strong Acid Resistant Properties

Descripción de producto

FEP Insulated High Temp Electric Cable Wire

Applications

FEP wire features excellent corrosion resistance, oil resistance, strong acid/alkali resistance, and oxidation resistance. It offers superior electrical insulation performance with high voltage resistance, low frequency loss, moisture resistance, and insulation stability. The wire is fire-resistant, aging-resistant, and has a long service life.

Electronic Industry: Temperature compensation wire, low/high temperature heating wire, aging-resistant wire, and flame-retardant wire.

Household Appliances: Internal wiring for air conditioners, microwave ovens, electronic sterilizers, rice cookers, electric kettles, heaters, ovens, frying pans, and lighting fixtures.

Product Features

Wear and scratch resistant
Easy to strip
High and low temperature resistant (-65°C to +200°C)
Anti-aging and corrosion resistant
Electromagnetic interference resistant

Cable Structure

Insulation	FEP, PFA, PTFE, ETFE
Number of Cores	Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores
Size	0.05mm² to 8mm²
Conductor Type	Solid core or stranded
Conductor Materials	Silver-plated copper or tinned copper wire
Shielding	Tinned copper wire weave shielded
Temperature Range	-65°C to +200°C
Rated Voltage	600V or below
Color	Multiple standard colors available

Product Types

Type	Name
AF-200	Silver Plated Copper Core FEP Insulation Install Wire
AF-200-1	Tin Plated Copper Core FEP Insulation Install Wire
AFP-200	Tin/Silver Plated Copper Core FEP Insulation Shield Install Wire
AFS-200	Tin/Silver Plated Copper Core FEP Insulation Stranded Install Wire
AFSP-200	Tin/Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire

Technical Specifications

Wire Gauge	Cross-section Area	Conductor Structure	Max. OD of Cable
36AWG	0.013mm²	7/0.05mm	0.65-1.3mm
32AWG	0.035mm²	7/0.08mm	0.75-1.4mm
30AWG	0.05mm²	7/0.10mm	0.85-1.6mm
28AWG	0.07mm²	7/0.12mm	0.9-1.65mm
26AWG	0.14mm²	7/0.16mm	1.1-1.95mm
24AWG	0.2mm²	19/0.12mm	1.2-1.98mm
22AWG	0.35/0.40mm²	19/0.16mm	1.4-2.2mm
20AWG	0.5mm²	19/0.18mm	1.6-2.4mm
18AWG	1mm²	19/0.26mm	2-2.9mm
16AWG	1.2mm²	19/0.28mm	2.2-3.1mm
14AWG	2mm²	19/0.37mm	2.7-3.6mm
12AWG	3mm²	37/0.32mm	3.6-4.6mm
10AWG	5mm²	37/0.41mm	4.5-5.6mm
8AWG	8mm²	133/0.28mm	6-7.3mm

Note: Specifications and core numbers can be customized beyond these standard options.
