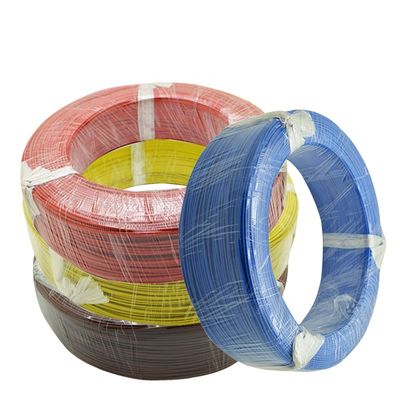

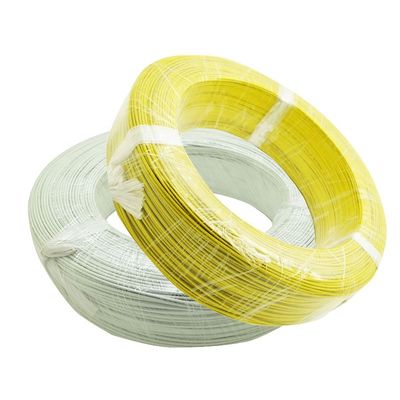

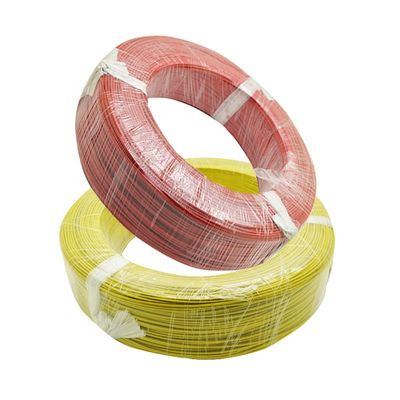

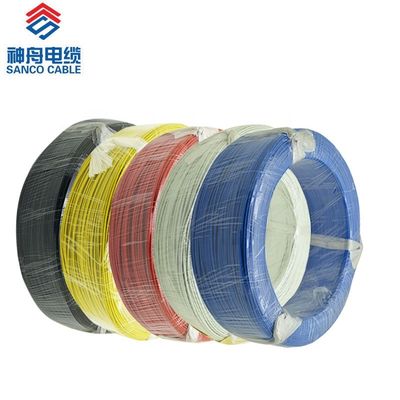

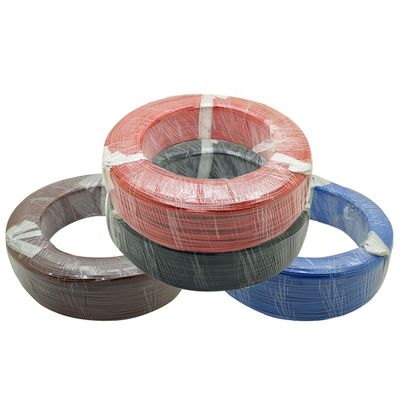

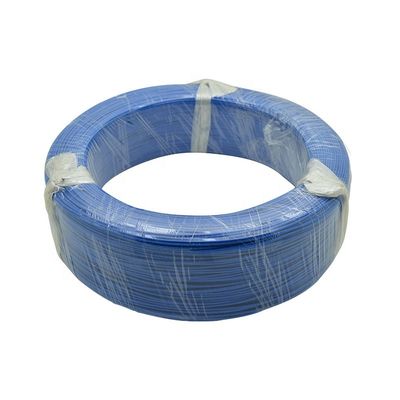

7 Strands Tinned Stranded Copper FEP Heating Wire with Wear and Scratch Resistance for High Temperature Applications

500
MOQ
7 Strands Tinned Stranded Copper FEP Heating Wire with Wear and Scratch Resistance for High Temperature Applications
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Material conductor: Cobre, cobre estañado o cobre plateado
Material de aislamiento: El FEP
Tensión nominal: CA 600V o más bajo
Tipo de conductor: Varado
Número central: Sola base o Multicores
Temperatura de trabajo: -65°C ~ +200°C
Calibre de alambre: 36 AWG a 8 AWG
Área de la sección transversal: 0,013 mm2 a 8 mm2
Estructura de conductores: 7/0,05 a 133/0,28
OD máximo: 0,65 mm a 7,3 mm
Tipos de aislamiento: FEP, PTFE, PFA, ETFE
Opciones de color: Blanco, azul, rojo, negro, amarillo, verde, transparente, amarillo/verde
Recuento de hilos: 7 Velas
Clasificación de voltaje: 250V a 600V
Rango de temperatura: -65°C a +200°C
Resaltar:

7 Strands Tinned Stranded Copper FEP Heating Wire

,

Wear Resistant FEP Heating Wire

,

Scratch Resistant FEP Heating Wire
Información básica
Lugar de origen: Hunan, China
Nombre de la marca: Sanco cable
Número de modelo: Serie AF-200
Pago y Envío Términos
Descripción de producto
7 Strands Tinned Stranded Copper FEP Heating Wire

FEP insulated wire features insulation made from fluorinated ethylene propylene (FEP) polymer, known for its high thermal stability, chemical resistance, and excellent electrical properties. Ideal for aerospace, automotive, and electrical applications in high-temperature and high-frequency environments.

Key Features
  • Wear and scratch resistant
  • Easy to install and strip
  • High and low temperature resistant (-65°C to +200°C)
  • Anti-aging and corrosion resistant
  • Excellent interference resistance
Technical Specifications
Conductor Materials Tinned Plated Copper, Silver Plated Copper, Bare Copper
Conductor Type Stranded or Solid
Number Core Single Core or Multiple Cores
Insulation FEP, PTFE, PFA Insulated
Rated Voltage 600V or Below
Rated Temperature -65°C to +200°C
Color White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green
7 Strands Tinned Stranded Copper FEP Heating Wire with Wear and Scratch Resistance for High Temperature Applications 0
Product Types
Type Name
AF-200 Silver Plated Copper Core FEP Insulation Install Wire
AF-200-1 Tin Plated Copper Core FEP Insulation Install Wire
AFP-200 Tin/Silver Plated Copper Core FEP Insulation Shield Install Wire
AFS-200 Tin/Silver Plated Copper Core FEP Insulation Stranded Install Wire
AFSP-200 Tin/Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire
Detailed Specifications
Wire gauge Cross-section area Conductor structure Max. OD of cable
36AWG 0.013mm² 7/0.05 0.65-1.3mm
32AWG 0.035mm² 7/0.08 0.75-1.4mm
30AWG 0.05mm² 7/0.10 0.85-1.6mm
28AWG 0.07mm² 7/0.12 0.9-1.65mm
- 0.1mm² 7/0.14 1-1.75mm
26AWG 0.14mm² 7/0.16 1.1-1.95mm
24AWG 0.2mm² 19/0.12 1.2-1.98mm
- 0.3mm² 7/0.23 1.25-2.05mm
22AWG 0.35/0.40mm² 19/0.16 1.4-2.2mm
20AWG 0.5mm² 19/0.18 1.6-2.4mm
- 0.6mm² 19/0.20 1.75-2.5mm
- 0.75/0.80mm² 19/0.23 1.8-2.6mm
18AWG 1mm² 19/0.26 2-2.9mm
16AWG 1.2mm² 19/0.28 2.2-3.1mm
- 1.5mm² 19/0.32 2.4-3.3mm
14AWG 2mm² 19/0.37 2.7-3.6mm
- 2.5mm² 37/0.30 3.4-4.4mm
12AWG 3mm² 37/0.32 3.6-4.6mm
- 4mm² 37/0.37 4-5.1mm
10AWG 5mm² 37/0.41 4.5-5.6mm
- 6mm² 37/0.45 4.8-5.9mm
8AWG 8mm² 133/0.28 6-7.3mm

Note: FEP high temperature lead wire specification and core number can be customized.

About Xiangtan Shenzhou Special Cable Co., LTD

As a stable wire and cable supplier for China's aerospace and military sectors with 21 years of experience, we produce our own cable compounds to ensure superior quality and competitive pricing. Our product range includes:

  • High Temperature wires
  • PTFE cable
  • FEP Cable
  • PFA Wire
  • ETFE Cable
  • Fluoroplastic Cables
  • Hook up wire
  • Electronic and Power cables

We maintain advanced production facilities, integrated management systems, and collaborate with universities and research institutes to offer customized cable solutions.

7 Strands Tinned Stranded Copper FEP Heating Wire with Wear and Scratch Resistance for High Temperature Applications 1
Exhibition & Global Presence

We have participated in major exhibitions including the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, and Power-Gen India. Our products have been exported to the US, Venezuela, India, Vietnam, Bengal, Africa and other countries.

7 Strands Tinned Stranded Copper FEP Heating Wire with Wear and Scratch Resistance for High Temperature Applications 2 7 Strands Tinned Stranded Copper FEP Heating Wire with Wear and Scratch Resistance for High Temperature Applications 3
Certifications & Honors
7 Strands Tinned Stranded Copper FEP Heating Wire with Wear and Scratch Resistance for High Temperature Applications 4
  • Contributed to China's Shenzhou 7 manned space flight project
  • Participated in China's first manned space flight development and testing
  • Collaborated with China Academy of Launch Vehicle Technology on the "Arrow of God" space exploration project
Our Services
7 Strands Tinned Stranded Copper FEP Heating Wire with Wear and Scratch Resistance for High Temperature Applications 5
  • Free technical consultation before, during, and after sales
  • Free samples and design services
  • Special monitoring during manufacturing process
  • 100% free insurance for internal transportation
  • OEM & ODM services available
  • Small order quantities accepted
Packing & Shipping
7 Strands Tinned Stranded Copper FEP Heating Wire with Wear and Scratch Resistance for High Temperature Applications 6
Frequently Asked Questions
7 Strands Tinned Stranded Copper FEP Heating Wire with Wear and Scratch Resistance for High Temperature Applications 7
Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer specializing in research, development and sales of military and consumer cable wire and cable compounds, located in Hunan Province, China.

Q: What is your company's strengths?

A: As a 21-year supplier to China's aerospace and military sectors, we produce our own cable compounds to maintain superior quality and competitive pricing.

Q: How do you guarantee your product quality?

A: We implement strict quality control throughout design, materials procurement, manufacturing, and testing processes to ensure product reliability.

Q: What's the warranty of your products?

A: We provide 1 year complete warranty with unconditional replacement or return for quality issues.

Q: How can I get the samples?

A: We offer sample orders and may provide small quantities free when available in stock (customer pays freight).
