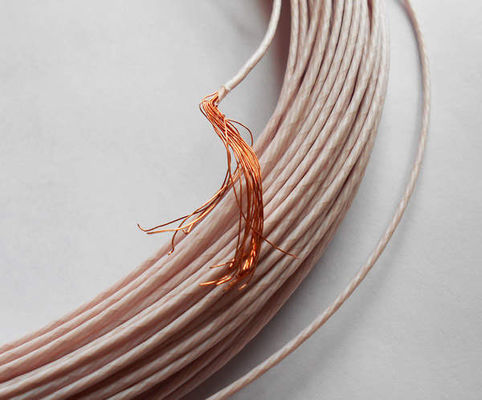

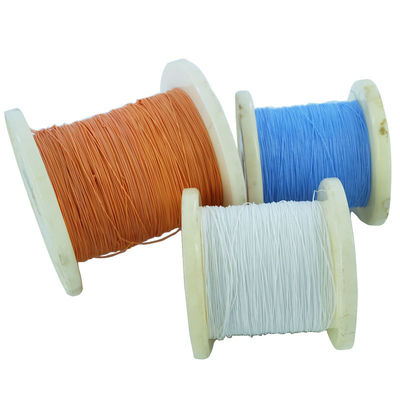

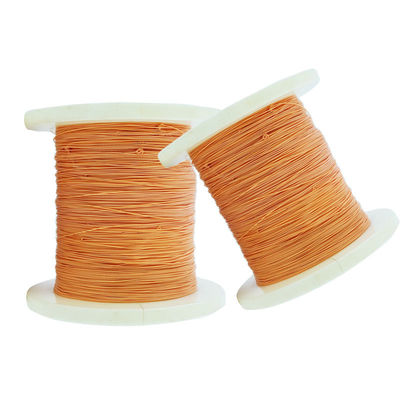

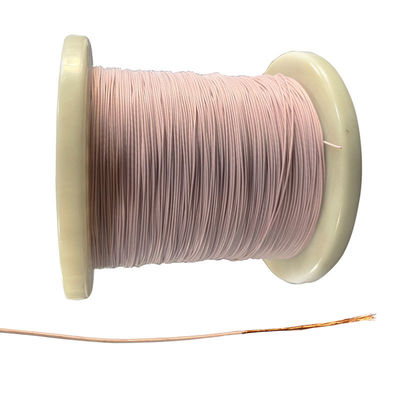

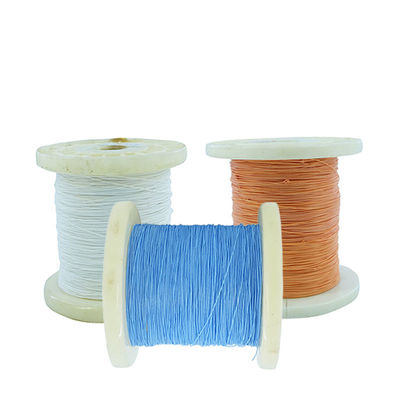

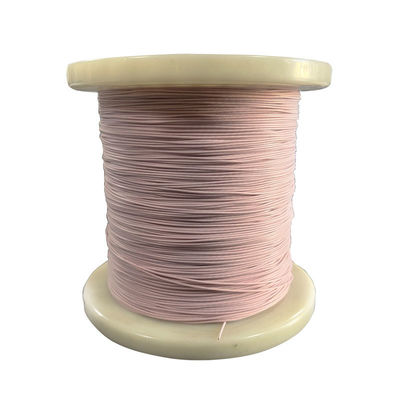

0.2mm² High Temperature Stranded Copper PTFE Wire
Product Description
PTFE wrapping wire is an electrical wire insulated with polytetrafluoroethylene (PTFE), a high-performance synthetic fluoropolymer. With excellent thermal and chemical resistance properties, this wire is ideal for demanding applications in aerospace, medical devices, and electronics. The PTFE insulation provides superior protection against heat, moisture, and chemicals, while maintaining flexibility for easy handling and installation.
Product Features
- Excellent corrosion resistance
- Resistant to oils, strong acids, alkalis, and oxidants
- Superior electrical insulation properties with high voltage resistance
- Moisture-resistant with high insulation resistance
- Flame-retardant and anti-aging properties
- Long service life
Cable Specifications
| Specification |
Details |
| Conductor Materials |
Silver Plated Copper or Bare Copper |
| Conductor Type |
Stranded or Solid |
| Insulation |
PTFE, FEP, PFA Insulated |
| Number Core |
Single Core or Multiple Cores |
| Size |
0.05~4mm² |
| Rated Voltage |
600V or Below |
| Rated Temperature |
-80~+200ºC |
| Color |
White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
Types and Names
| Type |
Name |
| AFR-200 |
Bare Copper wire conductor PTFE film insulated lead wire |
| AFR-250 |
Silver plated copper wire conductor PTFE film insulated lead wire |
| AFP |
Bare Copper wire conductor PTFE film insulated screen lead wire |
| AFP-1 |
Silver plated copper wire conductor PTFE film insulated screen lead wire |
| AFRP-200 |
Bare Copper wire conductor PTFE film insulation shield lead wire |
| AFRP-250 |
Silver plated wire copper conductor PTFE film insulation shield lead wire |
| AFRPF-250, AFPF |
Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire |
Cable Structure
| Wire Gauge |
Cross-section area |
Conductor structure |
Max.OD of wire mm |
Reference weight kg/km |
| 36AWG |
0.013 |
7/0.05 |
0.57 |
0.44 |
| 32AWG |
0.035 |
7/0.08 |
0.67 |
0.73 |
| - |
0.05 |
10/0.08 |
0.72 |
0.91 |
| - |
0.07 |
14/0.08 |
0.75 |
1.16 |
| - |
0.1 |
21/0.08 |
0.85 |
1.57 |
| 26AWG |
0.12 |
24/0.08 |
0.85 |
1.66 |
| - |
0.14/0.15 |
30/0.08 |
0.9 |
2.07 |
| 24AWG |
0.2 |
42/0.08 |
1 |
2.72 |
| - |
0.25 |
56/0.08 |
1.1 |
3.47 |
| 22AWG |
0.3 |
62/0.08 |
1.18 |
4.2 |
| - |
0.35 |
75/0.08 |
1.2 |
4.7 |
| 20AWG |
0.5 |
63/0.1 |
1.45 |
5.36 |
| - |
0.75/0.80 |
91/0.1 |
1.69 |
8.19 |
| 18AWG |
1 |
56/0.15 |
1.95 |
10.9 |
Note: Extruded PTFE cable core numbers and specifications are not limited to the above regulations and can be customized.
Company Information
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier for China's aerospace and military sectors, with 21 years of experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive pricing for global customers. Our product range includes High Temperature wires, PTFE Wire, FEP Wire, PFA Wire, ETFE Wire, Fluoroplastic Cables, Hook up wire, electronic cable, and Power cable. With advanced production facilities and an integrated management system, we collaborate with universities and research institutes to offer customized cable solutions.
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer engaged in research, development, and sales of military and consumer cable wire and cable compound. Our company is located in Hunan Province, China.
2. What is your company's strengths?
As a stable supplier to China's aerospace and military sectors with 21 years of experience, we produce our own cable compounds. This allows us to maintain superior quality and competitive pricing for our global customers.
3. How do you guarantee your product quality?
Quality is our top priority. We implement strict quality control measures throughout the entire process - from design and materials procurement to manufacturing, semi-finished product testing, and finished product inspection.
4. What's the warranty of your products?
We provide a 1-year complete warranty service. If products have quality issues, we will replace or refund unconditionally.
5. How can I get the samples?
We can prepare sample orders for you. For small quantities available in our stock, we can provide free samples, with the customer responsible for freight costs.
